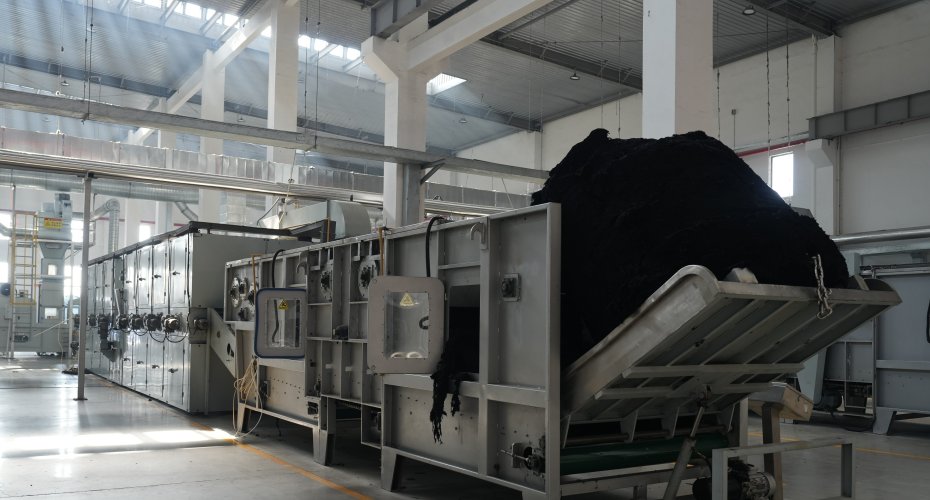

TDSK Wet Fiber Opening Machine Before Drying

FAQ

Q1: Where is the TDSK wet fiber opening machine installed?

A1: The TDSK is normally placed after dyeing, bleaching and moisture-removal equipment and before the dryer feeding section. The exact position depends on the factory layout and material-transfer method.

Q2: Which wet fibers can be processed?

A2: The machine is intended for process-compatible wet loose fibers used in dyeing or bleaching lines. Cotton, wool, acrylic and other fiber types require confirmation according to moisture content, fiber length, batch density and opening needs.

Q3: What information is needed for a Middle East project?

A3: Please provide the fiber type, incoming moisture, batch weight, hourly feed target, current material form, upstream machine, planned dryer, discharge height, local voltage, frequency and available floor space. Workshop temperature and wet-area drainage should also be confirmed before machine engineering.

Product Advantages

1. 1.Wet Fiber Preparation Before Drying

The TDSK loosens wet fiber after dyeing, bleaching and moisture removal. It prepares the material for transfer toward the feeding and drying sections.

2. 2.Separation of Compacted Fiber Clusters

Wet fiber can remain compressed after batch processing and water removal. The opening section separates fiber clusters and creates a more open material form for the next process.

3. 3.Connection With Drying Equipment

The machine acts as a processing link between wet treatment equipment and the dryer feeding section. Feed direction, discharge height and line speed must match the connected machinery.

4. 4.Defined Power and Machine Size

The published installed power is 9 kW, while the listed dimensions are 3450 × 1800 × 1600 mm. These figures help buyers prepare floor space and electrical connections.

5. 5.Project-Based Fiber Confirmation

The machine arrangement can be reviewed according to fiber type, incoming moisture, batch condition and planned dryer. This allows the opening section to be matched with the actual wet material.
