Product Introduction
In the field of textile machinery, high-speed warp knitting machines are one of the core pieces of equipment for producing products such as towels and home textiles. TONGDA Group's TDHKS series warp knitting machines (represented by TDHKS-4M and TDHKS-3/4), with their high efficiency and multi-functionality, have become one of the mainstream models in the industry.
Machine characteristics

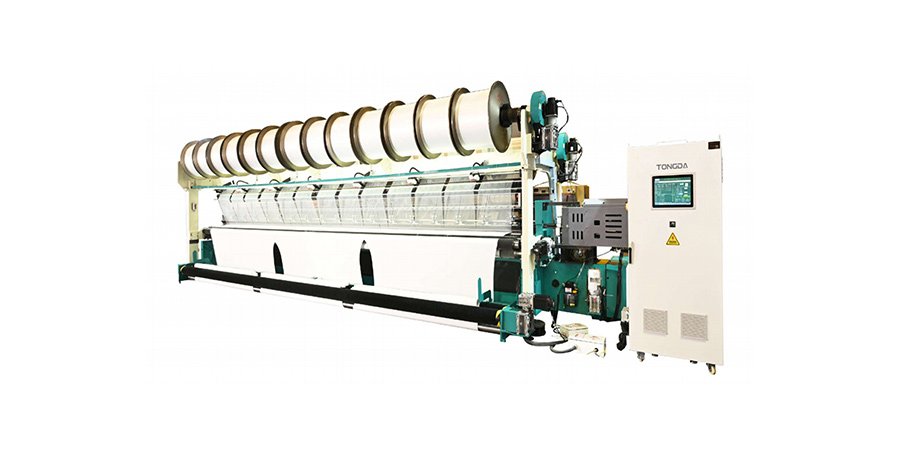

1. TDHKS-3/4 HIGH SPEED WARP KNITTING MACHIINE
It adopts nylon, acrylic, polyester filament yarn, spandex, polyester textured yarn, blended yarn etc to knit normal fabric, elastic fabric and napping fabric,through finishing process,it can be used as inside and outside cloth, Simmons mattress, mosquito netting,curtain, household interior decoration cloth, industrial cloth, coated fabric,shoes, car household interior decoration cloth etc.
Advantages
1. All needle beds apply carbon fiber material which lets machine in variable temperature and energy saving ,and ensure the stable operation in high speed.
2. By using light but stable hollow-section magnesium alloy materials for all knitting elements, to reduce the weighting load and moment inertia of knitting elements and increase the rigidity of needle hars,to guarantee machine running more smoothly and steadily
3. Knitting mechanism adopts computer animation simulated motion, guide bar needle uses small needle head.it optimizes knitting curves that make knitting motion more reasonable.
4. Crankshaft connection rod setup adopts computer optimization design, dynamic balance of crankshaft make noise lower and shake lighter. It is efficient to improve service life.
5. The machine adopts EBC multispeed electronic let-off setup which makes it easy to operate and control. Oil tank lubrication setup for crankshaft adopts initiative pressing lubricate and oil circulation constant temperature control which makes operation more stable and safe and reduces the consumption efficiently.

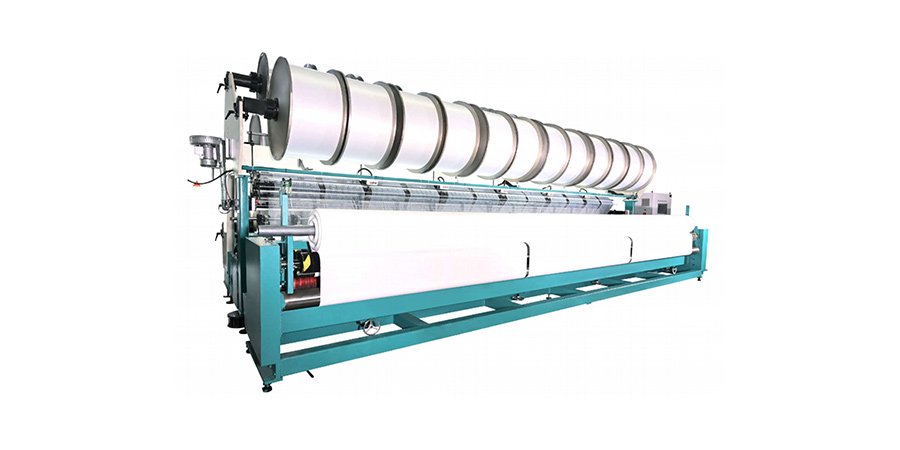

2. TDHKS-4M HIGH SPEED WARP KNITTING MACHINE FOR TOWEL
It adopts nylon,acrylic,polyester filament yarn,cotton,superfine fiber etc toknit single-faced and two-faced terry fabric. Terry fabric that takes root in the base cloth of pillar stitch would not be laddering.The yarn will not drop when cut,the cloth surface is soft and smooth,the height of terry fabric is uniform,it is good for bedding and covering. The product is used widely as clean fabric medical fabric,Bathrobe, bath towel, sofa towel, bed sheets,bedspread,curtain,etc.With electronic moving control setup (EL), the machine
can make any change in quantity of horizontal and row, so it can make the large design mosquitoes fabric,on the same machine can produce single, double looped fabric, interval looped fabric and a variety of different patterns of looped fabric.The machine can make
automatic conversion in products when running, greatlysatisfy the requirement for multi usage.
1. By using light but stable hollow-section magnesium alloy materials for all knitting elements, to reduce the weighting load and moment inertia of knitting elements and increase the rigidity of needle hars,to guarantee machine running more smoothly and steadily
2. All needle beds apply carbon fiber material which lets machine in variable temperature and energy saving ,and ensure the stable operation in high speed.
3. Knitting mechanism adopts computer animation simulated motion, guide bar needle uses small needle head.it optimizes knitting curves that make knitting motion more reasonable.
4. Crankshaft connection rod setup adopts computer optimization design, dynamic balance of crankshaft make noise lower and shake lighter. It is efficient to improve service life.
5. The machine adopts EBC multi speed electronic let-off setup which makes it easy to operate and control. Oil tank lubrication setup for crankshaft adopts initiative pressing lubricate and oil circulation constant temperature control which makes operation more
stable and safe and reduces the consumption efficiently.
6. Brushing device adopts servo motor, it is driven by reducer. Brushing roller adopts large sectional hollow pipe(ф 150mm) which reduces the shake when the gray fabric terrys efficiently.
Click the link below for more information
Machine advantages
Compared to traditional warp knitting machines, the core advantages of the TDHKS series lie in its "multi functionality + high efficiency + high adaptability."
Multifunctional integration: One machine can achieve "loop height/arrangement adjustment, pattern switching," and even supports "automatic product switching" during the production process, adapting to multi-category orders;
High efficiency and low consumption: Lightweight components + intelligent lubrication setup improve operating speed while reducing energy consumption and component wear;
High adaptability: Superior adaptability in materials (compatible with various fibers), temperature (stable operation across a wide temperature range), and patterns (large jacquard/multi color loops) compared to traditional models;
Superior product quality: Towel fabrics have uniform loop height, are less prone to shedding, and the fabric is soft to the touch and highly clean, meeting the quality requirements of high-end markets.
Finished product
