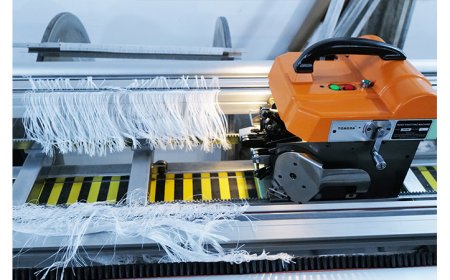

Working mode | Movable frame loom internal warp connection |
Power mode | Electric, 50W×36V×3Ax12000 rpm AC series motor. Manual: a small number of trial knots |
Power mode | Rotary variable resistor stepless speed regulation |
Warp separation mode | Double-tube four-twist rotation 180 degrees warp division, warp division brush assistance |
Knotting speed | 100-400 heads/min, commonly used 250 heads/min |
Knot type | Cobble knot (i.e. one-bailing knot) |
End length | 20mm-25mm |
Working range | 80cm-250cm |
Head weight | 9kg |
Overall dimensions | Head: length 340×width 210×height 240mm Frame: 80cm--250cm |
FAQ
Q1: What is the difference between the tubular and knife-type TD168 machines?
A1: The tubular version is developed for thicker yarns and stronger twist levels. It uses an extended tubular knot-forming part and provides a published yarn-end length of 20 to 25 mm. The knife-type version uses a horizontal knife head and produces shorter yarn ends.
Q2: What working width and speed does the tubular TD168 provide?
A2: The published working width is 80 to 250 cm. Its working rate is 100 to 400 ends per minute, with approximately 250 ends per minute listed for normal production. Actual output depends on yarn thickness, twist, warp density and preparation conditions.
Q3: What information is needed for a tubular warp knotter quotation?
A3: Please provide the yarn material, count or dtex, yarn diameter, twist level, sizing condition, total warp ends, warp-sheet width, warp density, loom model and required knot strength. Middle East buyers should also confirm the local input voltage, transformer arrangement and spare-part requirements.
Product Advantages
1.Developed for Thick and High-Twist Yarns
The tubular knot-forming structure is designed for thicker fibers and yarns with stronger twist. This addresses weak connections and yarn separation problems that may occur when these materials are processed with a knife-type knotter.

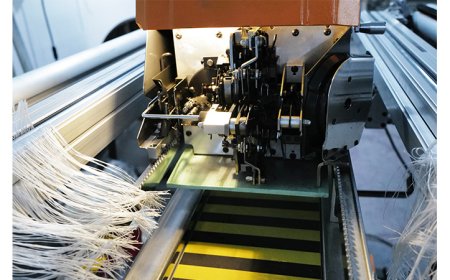

2.Extended Tubular Knot-Forming Part
The published tubular working length is approximately 25 mm. This extended working area supports yarn connection when a larger yarn diameter requires more space during knot formation.
3.Knot Tightness Matched to Fiber Thickness
The knot tightness can be set according to the fiber and yarn thickness. This helps the mill prepare the knotting condition for different heavy or high-twist warp yarns.
4.Working Range and Knotting Rate
The movable frame covers warp widths between 80 and 250 cm. The published rate is 100 to 400 ends per minute, with approximately 250 ends per minute listed for normal production.
5.Simplified Cleaning and Shared Components
The tubular design does not use a spring needle or wire-feeding mechanism, helping reduce loose wire remnants during cleaning. The frame and many components are compatible with the knife-type TD168 system, which simplifies parts planning and equipment conversion.
