Fancy yarn raising machine
Convenient and Fast
Efficient and Stable Production
Quality and Safety Guarantee
TD1430 Type High Speed Fancy Yarn Raising Machine
main feature :
TD1430 is a new type of high speed yarn raising machine.It is suitable for fancy yarns and traditional yarns of wool and other synthetic fibers, especially for short yarns, medium and high count fancy yarns.
Product details

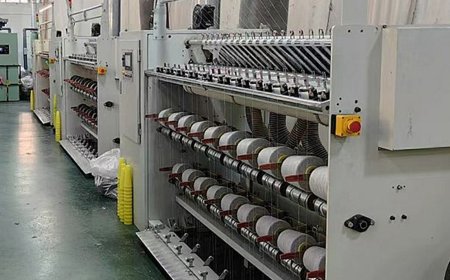

Precise Transmission Control
The use of servo motor and synchronous belt drive ensures accurate and stable transmission, effectively reduces the breakage rate and improves yarn quality.

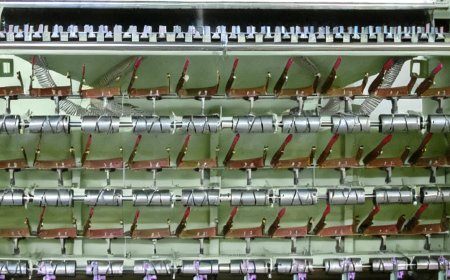

Flexible Process Adjustment
The roller spacing, raising coefficient and winding number are all adjustable to support diverse raising yarn styles and excellent quality.
Efficient & Stable Production
The rollers are strictly controlled in terms of dynamic balance and roundness, and can run stably at high speed, with a yarn delivery speed of up to 200 m/min.

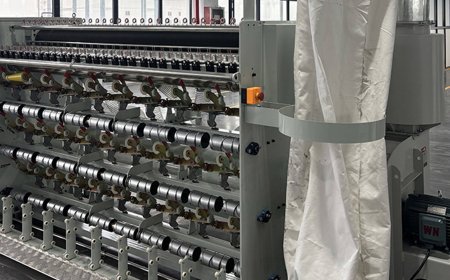

Environment & Quality Assurance
Equipped with a dust collection system to reduce pollution, improve working conditions, and avoid secondary contamination of yarn; it has functions of automatic stop when yarn is broken, full, or power off, and tension segment control to improve operational safety.
Main technical parameters
| Item | Specifications | Item | Specifications |
| Spindle number | 30 | Spindle Gauge(mm) | 230 |
| Groove Roller Diamete(mm) | Φ82 | Groove Roller Type | Superplastic Alloy |
| Bobbin Degree | 3°30'5°57' | Max Diameter of Yarn Forming(mm) | 280 |
| Max Linear Speed(m/min) | 200 | Max Rotational Speed(RPM) | 2000 |
| Yarn Count(NM) | 1-50 | Max Length of Bobbin ( mm ) | 176 |
| Raising Coefficient | 3-20 | The Creel Cone Positions | 60 |
| Input Roller Motor Power ( k W ) | 2 | Raising Roller Motor Power(KW) | 4 |
| Groove Roller Motor Power(kW) | 2 | Fan Motor Power(KW) | 4 |
| Machine Length ( mm ) | 4200 | Power | Three-phase 380V,zero line and ground wire |
