Warp knitting technology, as an important component of the modern textile industry, occupies an irreplaceable and crucial position in the global textile industry chain due to its unique technological characteristics and wide range of applications. It is also one of the technological directions our institute is pursuing to promote textile technology innovation and empower industrial development during its "second phase of development." Warp knitting machines use a series of orderly arranged needles to simultaneously loop and interlock one or more groups of parallel yarns along the warp direction to form a fabric. This forming principle, distinct from weft knitting and weaving, endows it with superior technological characteristics, thereby generating enormous market application value.
Working Principle of Warp Knitting Machines
Warp knitting is a type of knitting technology, different from weft knitting (such as sweater knitting). The core feature of a warp knitting machine is that all yarns are fed in simultaneously along the length of the fabric and interlock to form loops, thus creating the fabric.
(I) Core Components
The stable operation of a warp knitting machine relies on the precise coordination of multiple components. Each core component has a clearly defined function and is indispensable:

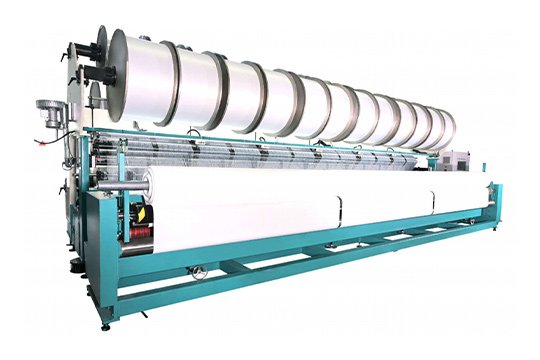

Warp Beam: This is the "heart" of the warp knitting machine, responsible for the core function of yarn supply. All knitting yarns are wound parallel to each other on a huge warp beam. A single machine can be configured with one or more warp beams to achieve the synchronous supply of yarns of different materials, colors, and functions, depending on production needs.
Knitting Needles: The main loop-forming component, arranged vertically or horizontally on the needle bed. They hook the yarn and form loops through up-and-down (or left-and-right) movement.

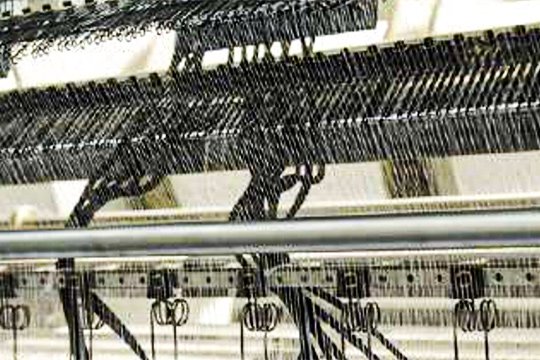

Guide Needles: Thin, sheet-like components mounted on the guide bars. A single guide needle guides one yarn. The guide bars are controlled by a complex mechanism, allowing for precise lateral oscillation and back-and-forth movement.
Sinkers: Auxiliary components that work in conjunction with the knitting needles. During loop formation, they hold and pull the old loops, assisting in the passage of new loops.
(II) Work Cycle
The warp knitting machine weaving process is a highly coordinated, high-speed cyclical process, mainly divided into 6 core stages:
1. **Unlocking the Loop:** The knitting needle rises, allowing the old loop to slide from the hook onto the needle bar, creating space for the new yarn.
2. **Laying the Yarn:** This is the core action of warp knitting. The guide bar moves all the guide needles laterally, accurately placing the yarn in front of the needle hook. Simultaneously, the guide bar moves back and forth to determine whether the yarn wraps around the needle or passes between the needles.
3. **Taking the Yarn:** The knitting needle descends, hooking the new yarn placed by the guide needles, completing the yarn transfer.
4. **Closing the Loop:** As the knitting needle descends, the old loop moves upward, pushing the closing needle latch to close the needle opening, allowing the old loop to fit onto the closed latch.
5. **Loop Formation:** The knitting needle continues to descend, the old loop detaches from the needle tip and loops onto the new yarn, forming a new loop.
6. **Pulling:** The sinker or pulling mechanism pulls the newly formed fabric downwards, preparing for the next cycle.
(III) The formation of patterns
1. Number of guide bars: Depending on the complexity of the fabric, warp knitting machines can be equipped with multiple guide bars, each guiding a different set of yarns.
2. Lateral movement pattern: Each guide bar's unique, programmable lateral movement pattern is controlled by a pattern plate cam or advanced electronic servo mechanism. Different movement patterns cause the yarns to wrap around the needles in different ways, thus forming various complex weave structures such as chain patterns, mesh patterns, and jacquard patterns.
The Market Application Value of Warp Knitting Machines
Apparel and home textiles are traditional application scenarios for warp knitting technology and core carriers of people's textile needs. Warp-knitted products, with their combined advantages of aesthetics, comfort, and durability, are widely used in apparel categories such as underwear, swimwear, sportswear, and formal wear, as well as a large number of products including lace, curtains, sofa fabrics, and bedspreads. These products, combining beauty, comfort, and durability, are highly favored by brands and consumers, resulting in a huge and stable market.
The high efficiency of warp knitting machines helps reduce energy consumption and labor costs per unit product, promoting industrial chain upgrading and sustainable development. Simultaneously, warp knitting technology reduces raw material waste and enables the production of lightweight products, indirectly contributing to energy conservation and emission reduction. Furthermore, the structural design of warp-knitted spacer fabrics allows for product recycling, aligning with the trend of green manufacturing.
Based on science and technology and focused on innovation, warp knitting technology is continuously strengthening its technical foundation and deepening its industrial applications. In the future, our institute will continue to drive innovation and be results-oriented, constantly reducing raw material consumption, optimizing human resource allocation, and improving operational efficiency, striving to promote modern agriculture towards high efficiency and intelligence, and injecting strong momentum into the high-quality development of the industry.
