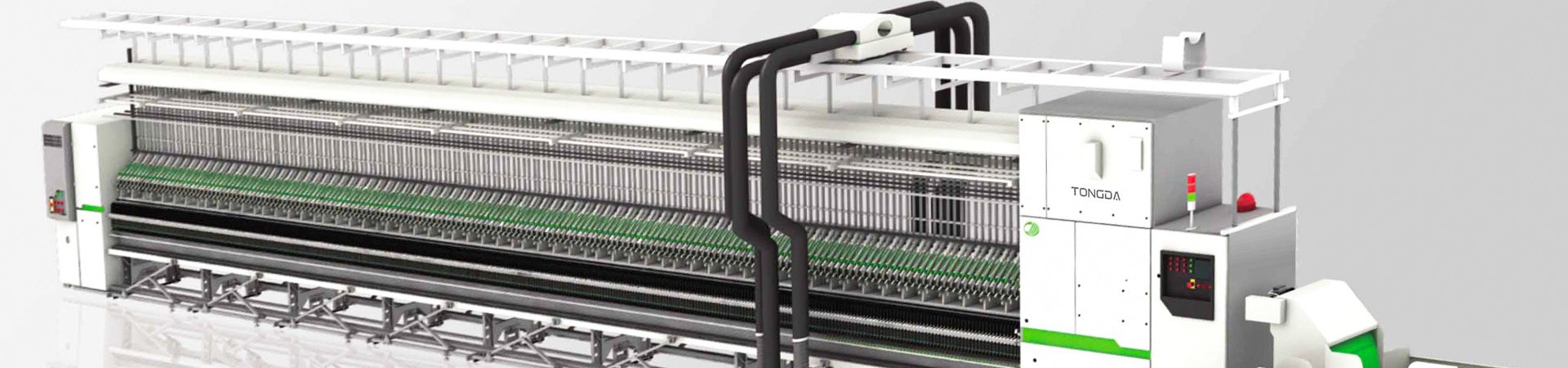

Model | FA1568E |
Number of spindle | 396-612 |
Spindle gauge | 75mm |
Doffing | Auto Doffing |
E-draft | The front roller,middle and back roller by service driver |
Elifting | Electric lifting system |
Direction of Twist | z/s can select |
Ring diameter | O47x11.2,051x11.2,055x11.2 047,051,Q55 |
Number of count | 10tex-50tex(20Nm-100Nm) |
Draft system | 3rollers,2belst,roker pressurization |
Draft Range | Infinitely variable |
Spindle Speed | 6000-16000r/min |
Twist Range | Infinitely variable |
Feed System | 140x280mm 220x230mm Feed with suspension spindles |
Lift Stroke | 220mm 235mm |
Engine Power | 25kw(420s-516s)kw,31(528s-612s)kw |
Yarn Tube Length | 260mm、245 |
FAQ
Q1: What fibres and yarn counts can the FA1568E process?
A1: The machine is intended for wool, cashmere, mohair and suitable blended materials. Its published yarn-count range is 10 to 50 tex, equivalent to 20 to 100 Nm. Final suitability depends on fibre length, roving quality, blend ratio, yarn structure and twist.
Q2: Which spinning methods are available on the FA1568E?
A2: The machine can work with ring spinning, compact spinning and Siro-compact spinning. A three-roller compact unit is used for the compact spinning arrangements. The process should be confirmed according to the required yarn specification.
Q3: What information is needed for an FA1568E quotation?
A3: Please provide the fibre material, blend ratio, roving count, target yarn count, twist, spinning mode, spindle quantity, ring diameter, tube length and planned package weight. Local voltage, frequency, compressed air and workshop conditions should also be provided.
Product Advantages

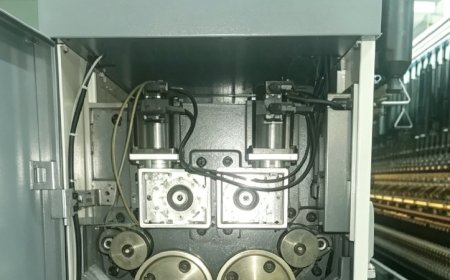

1. Independent Servo Drafting
The front, middle and back rollers are driven by individual servo motors. Drafting settings can be managed through the HMI according to yarn count, roving data and spinning mode.

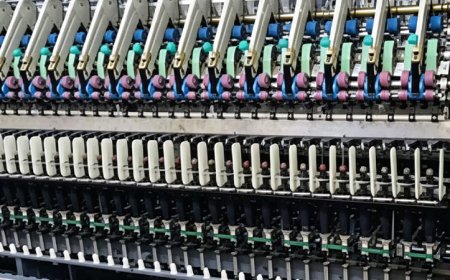

2. Integrated Automatic Doffing
The vertical bobbin-tray system handles full-bobbin removal, placement and conveying. This reduces repeated manual handling during package replacement.

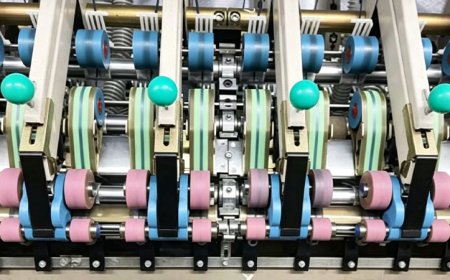

3. Three Spinning Modes
The FA1568E supports ring spinning, compact spinning and Siro-compact spinning on the same machine platform. The spinning mode can be arranged according to the required yarn structure.

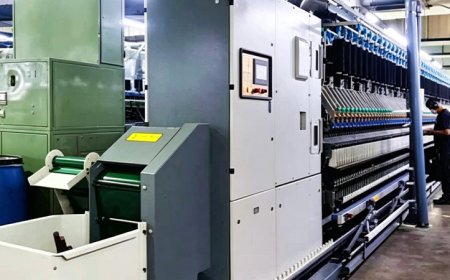

4. Electric Lifting Control
The electric lifting system manages the ring-rail movement and package-building process. Lift strokes of 220 or 235 mm are available according to the tube and package plan.
5. Flexible Spindle Configuration
Machine configurations cover 396 to 612 spindles with a 75 mm spindle gauge. Ring size, tube length, lift stroke, twist direction and motor power can be matched with the confirmed yarn specification.
