FAQ

Q1: Which types of yarn dyeing carriers are shown on this page?

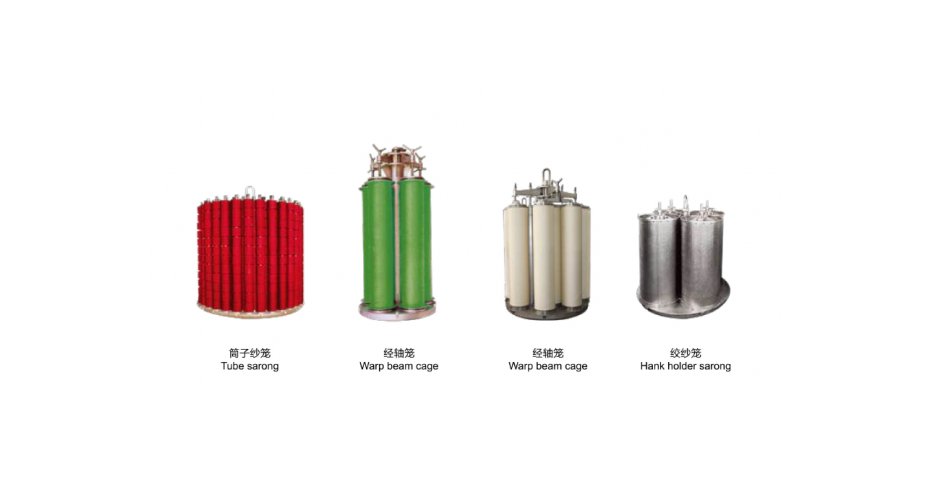

A1: The published image shows a package yarn carrier, warp beam carrier arrangements and a hank yarn carrier. The required type depends on whether the material is loaded as cones, cheese packages, beams or hanks.

Q2: How does a perforated yarn package carrier work?

A2: Yarn packages are placed on perforated vertical spindles connected to a hollow carrier base. Dye liquor enters the carrier through the machine circulation connection and passes through the spindle openings and yarn packages during processing.

Q3: What information is needed for carrier matching?

A3: Please provide the dyeing machine model, vessel inside diameter, carrier diameter and height, spindle quantity, package diameter and height, package density, batch weight, liquor connection dimensions, working temperature, working pressure and lifting method. Material grade and sealing-part requirements should also be provided.

Product Advantages

1. 1.Multiple Dyeing Carrier Arrangements

The product range includes carrier arrangements for package yarn, warp beams and hank yarn. Each configuration serves a different material form and dyeing process.

2. 2.Organized Yarn Package Positioning

Vertical spindles hold cone or cheese packages in arranged columns inside the dyeing vessel. Package dimensions and spindle spacing can be matched during the carrier design review.

3. 3.Perforated Path for Dye-Liquor Passage

Openings in the spindle structure allow dye liquor to pass through the yarn package interior when connected to the circulation system. Package density and sealing should be checked to manage liquor flow through each column.

4. 4.Vessel and Pipe Interface Matching

Carrier diameter, height, base connection and liquor inlet must correspond with the dyeing vessel and circulation pipe arrangement. Confirmed interface data helps prevent installation and loading problems.

5. 5.Central Lifting Point for Carrier Handling

A central lifting point supports carrier transfer between loading, dyeing and unloading areas. Hoist capacity, lifting height, carrier weight and loaded batch weight should be confirmed before use.
