Steel Reed

main feature :

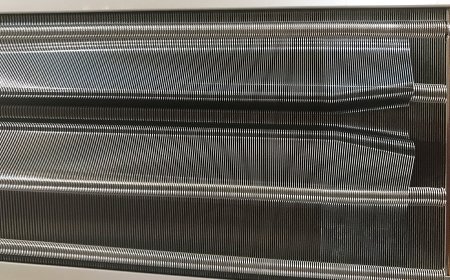

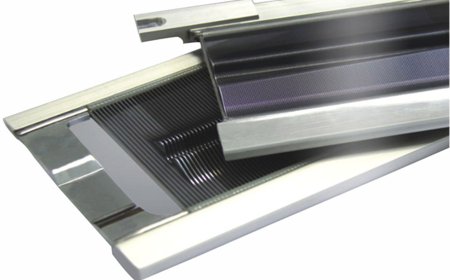

The Steel Reed is made by dents, baulk, SS half circle,SS wire coil, special adhesive material etc. Widely applied on air jet loom, water jet loom, rapier loom and so on.  In order to reach the demands ot high qualty labric and industrial textile producis, the yarn is deve loping to highcounl, mu lticolor, var ious libers, and the labric is developing to high counl, high density, environment protection. So we have researched out high densty, multicolor, multi-nozzle, double energy saving type profile reeds to let you choose.


_0002_主图
_0000_12
_0001_9

Product details

In order to reach the demands of high quality fabric and industriatextile products, the yarn is developing 1o high count. multicolor, various fibeers, and the fabric is developing to high count, high density.

  •



    So we have researched out high density, multicolor, multi-nozzle, double energy saving type profile reeds to let you choose. Special design of conical air-jet reeds.

  •



    We can produce various conical air -jet reeds according to the demands of dents about different fibers, yarns and looms. Glass fiber special used air-jet reeds.

  •



    Modeled handwork carpet(hang) special used heavy reeds. Various specifications of best quality tape reeds for non-shuttle |ooms, warptying comb reeds, any reeds of plastic weaving machine. Waiting for your special measurements to custom-made.

Main technical parameters

Air jet reed

Name

Code

Scale

No. of Reed


60/10cm~320/10cm

Width of Dent

b

4

Total Width

l

<6000

Total Height

h1

100~122

Height of Air Current Guide

h2

51,56,54,57

Width of End Reed

L1,L2

1~20

Rapier and projectile looms reed

Name

Code

Scale

Type

Flat Reed/Double Reed

Material

Alloy aluminum baulk, high carbon dents, SS coiling, strong adhesive material

Characteristic

Flat lubricity, dents array uniform, no scar, no burr

No. of Reed


20~240/10cm

Total Width

L

<6000

Useful Width

L1

customized

Total Height

H

90~180

Width of Dents

b

2.7/3.0/4.0

Height of Top Baulk

h1

10/12

Height of Bottom Baulk

h2

18/20/26

Thickness of Baulk

d

6/8

Water Jet Reed

Name

Code

Scale

Material

SS dents and SS end dents

Characteristic

Reed eye uniform, dents bright, high resistance abrasion

No. of Reed


20~260/10cm

Total Width

L

<6000

Useful Width

L1

customized

Total Height

H

90~180

Width of Dents

b

2.2/2.5/2.7/4.0

Height of top baulk

h1

12/18

Height of bottom baulk

h2

18
