Introduce
Its core function is to efficiently comb and purify fibers such as wool and hemp by integrating a variety of innovative technologies, producing high-quality wool webs or hemp strips. It is a key piece of equipment in the textile industry to ensure the quality of raw materials for mid-to-high-end textiles.
Product Positioning

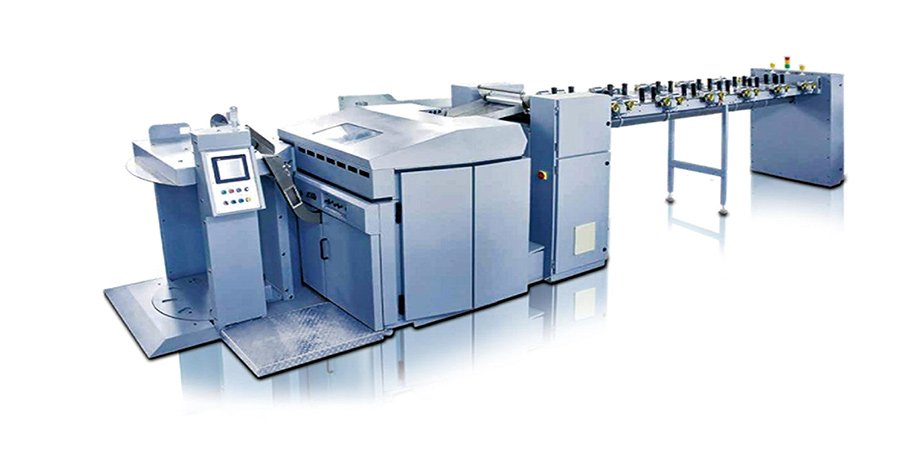

The FB91D series wool combing machine and the FB91D(M) linen combing machine are new-generation combing equipment developed by Tongda Group based on years of technological accumulation, achieving advanced performance levels in the industry. Both models integrate core technologies such as intelligent fault monitoring, online speed control, and precise feeding, adapting to the processing needs of various fibers. They can enhance the economic benefits and market competitiveness of enterprises, making them the preferred equipment for mid-to-high-end textile companies.
Scope of application
Wool Combing Machine (FB91D) Suitable for wool fibers, synthetic fibers, cashmere, mohair, blended fibers, etc., especially suitable for feeding short fibers (cashmere) and fibers with weak cohesion (mercerized fibers).
Hemp combing machine (FB91D (M)) Suitable for bast fibers, such as flax, ramie, hemp, etc., and can be adapted to feeding both long and short linen fibers.
Click the link below for more information
Wool Combing Machinehttps://www.china-tongda.com/wool-combing-machine-fb91d.html
Working Principle
Centered on "intelligent monitoring + precise combing," this system integrates multiple specialized technologies, resulting in a highly efficient and stable process that optimizes the entire workflow from fiber feeding to high-quality finished product output. The system uses a frequency converter to control equipment operation, working in conjunction with the core combing mechanism to purify and straighten the fibers. Simultaneously, online control technology and fault monitoring mechanisms ensure the continuity and accuracy of the combing process.
Core Functions
1. Multi-fiber Adaptive Processing
It can process single and mixed wool fibers, as well as various hemp fibers, meeting the combing needs of different textile raw materials and adapting to the production of mid-to-high-end textiles.
2. Precise Combing Quality Control
By optimizing key mechanisms and materials, it improves the quality and yield of wool/linen webs, resulting in excellent impurity removal, uniform sliver texture, and reduced raw material loss during processing.
3. Intelligent Fault and Speed Control
It features wool entanglement monitoring, automatic stop for broken slivers, and hydraulic and pneumatic pressure alarms, ensuring rapid response to fault shutdowns; online control technology allows for flexible adjustment of working speed to adapt to different processing scenarios.

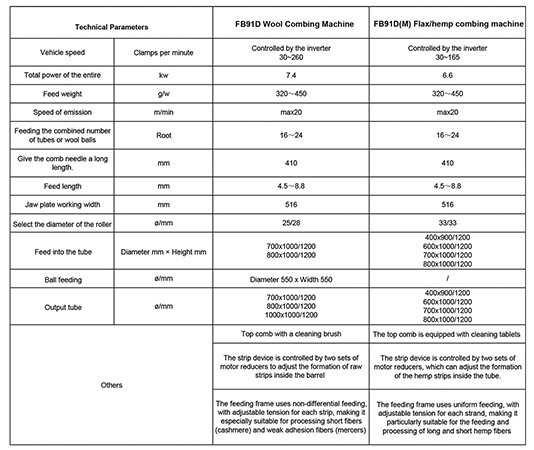

Key Technical Features
1. Rapid Fault Response: Fault shutdown response speed is improved by 50%, directly reducing delayed shutdown losses by 95%.
2. Flexible Speed Adjustment: Wool combing machines operate at speeds ranging from 50-265 nips/min, while linen combing machines operate at 30-165 nips/min, adapting to different processing needs.
3. Significantly Increased Capacity: Wool combing machines increase capacity by approximately 60% compared to traditional equipment, helping companies expand their production scale.
4. Optimized Feeding and Sliver Output: Adopting a uniform feeding design, the tension of each sliver is adjustable; the sliver output device is controlled by two sets of motor reducers, allowing for flexible adjustment of fiber sliver formation within the sliver can.
5. Specially Designed Cleaning Mechanism: Wool combing machines are equipped with cleaning brushes on the top comb, while linen combing machines are equipped with cleaning discs on the top comb, ensuring a clean and stable combing process.
Grooming effect

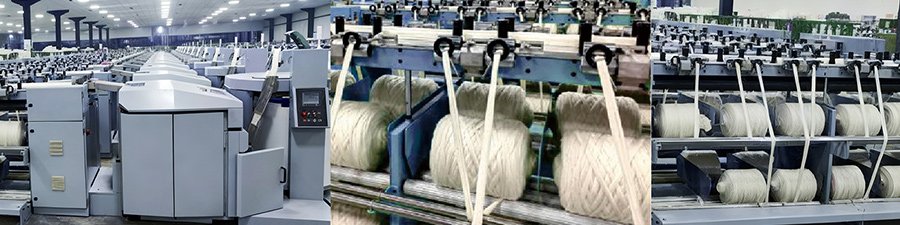

Market Applications
Currently, it has been applied in batches to more than 20 well-known textile companies, including Tianyu Wool Industry, Xin'ao Group, Xinzhonghe, and Jiangsu Sunshine, and has won unanimous praise from customers for its excellent performance.
